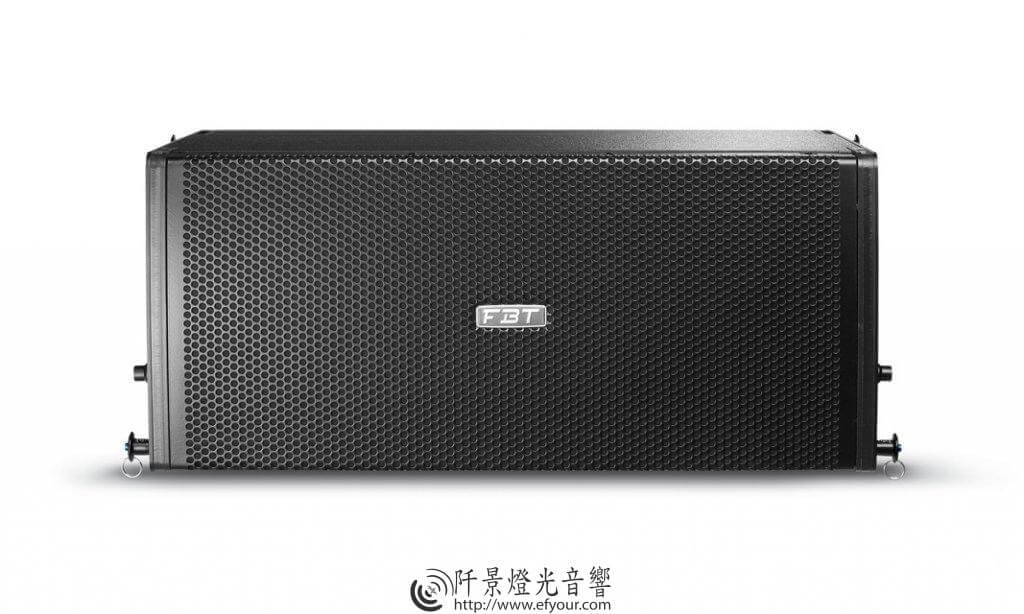

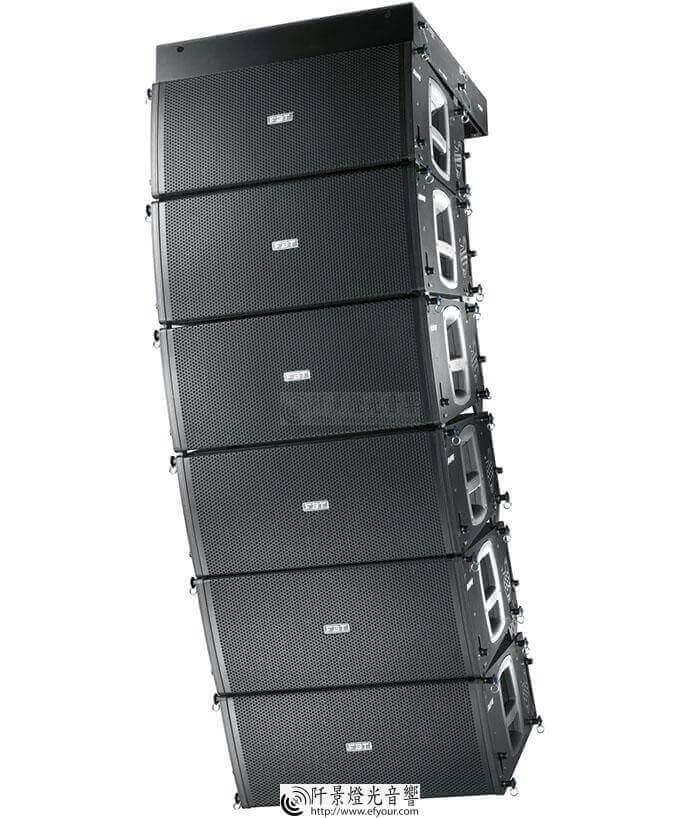

FBT 陣列式喇叭

全音域

品牌型號 :

-600W + 300W RMS – 135DB總SPL精度覆蓋垂直有源線路陣列
-兩個帶64mm(2.5“)音圈的250mm(10”)低音單元
-頻率響應從55Hz到20KHz
-堅固的樺木膠合板櫃體,集成鋁合金把手

SPECIFICATIONS
System Type:bass reflex
Built-in Amplifiers LF / HF:cont.: 400W RMS / 200W RMS
 max.:600W RMS / 300W RMS
 peak.:1200W / 600W
Frequency Response (@-6dB):55Hz – 20kHz
Input Impedance:22k Ohm
Maximum SPL ( cont. / peak ):128dB / 135dB
Dispersion:90° x 10° max dependant upon n° of elements
Crossover Frequency:15kHz
AC Power requirement:640 VA
Low Frequency Woofer:2 x 10″ – 2.5″ coil
High Frequency Driver:2 x 1″ – 1.7″ coil
Input Connectors:XLR with loop
Net Dimensions (WxHxD):25.66″ x 11.65″ x 16.73″
  652 x 296 x 425mm
Shipping Dimensions (WxHxD):31.10″ x 14.76″ x 20.47″
    790 x 375 x 520mm
Net Weight:83.77 lbs / 38 kg
Shipping Weight:90.38 lbs / 41 kg
Enclosure Material:Birch plywood
Power cord:7 mt. / 22.96ft

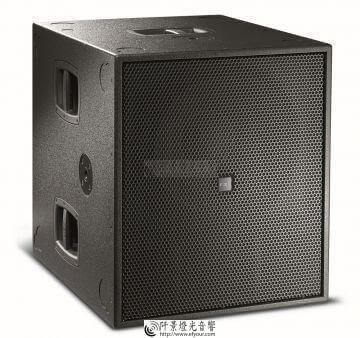

超低音

品牌型號 :

18″主動式陣列

功率:2500W

Bass-reflex amplified subwoofer

  • 460mm (18″) high excursion woofer B&C with 100mm (4″) coil
  • Frequency response from 30Hz to 100Hz
  • 2500Wrms class D amplifier with switching power supply
  • DSP processor with 6 presets, 6-step delay
  • Control panel with XLR input and stereo link, volume, presets, delay, phase 0°-180°, status
  • Neutrik PowerCON TRUE1 IN and LINK power connectors
  • Box in 18mm (0.7”) birch plywood with anti-scratch varnish
  • Two M20 stand sockets and 4 aluminum handles, predisposed for 4 x 100mm (4”) swivel casters
  • Integrated mechanics compatible with VHA406A and VHA112SA for ground stack configurations.
  • Extremely robust grid with protective fabric
  • Ideal for reinforcing and extending the low range of the VHA system, it can only be used with VHA406A or as an infra if present also the VHA 112SA
